BF45LT

Bench Milling Machine Accessory Gift

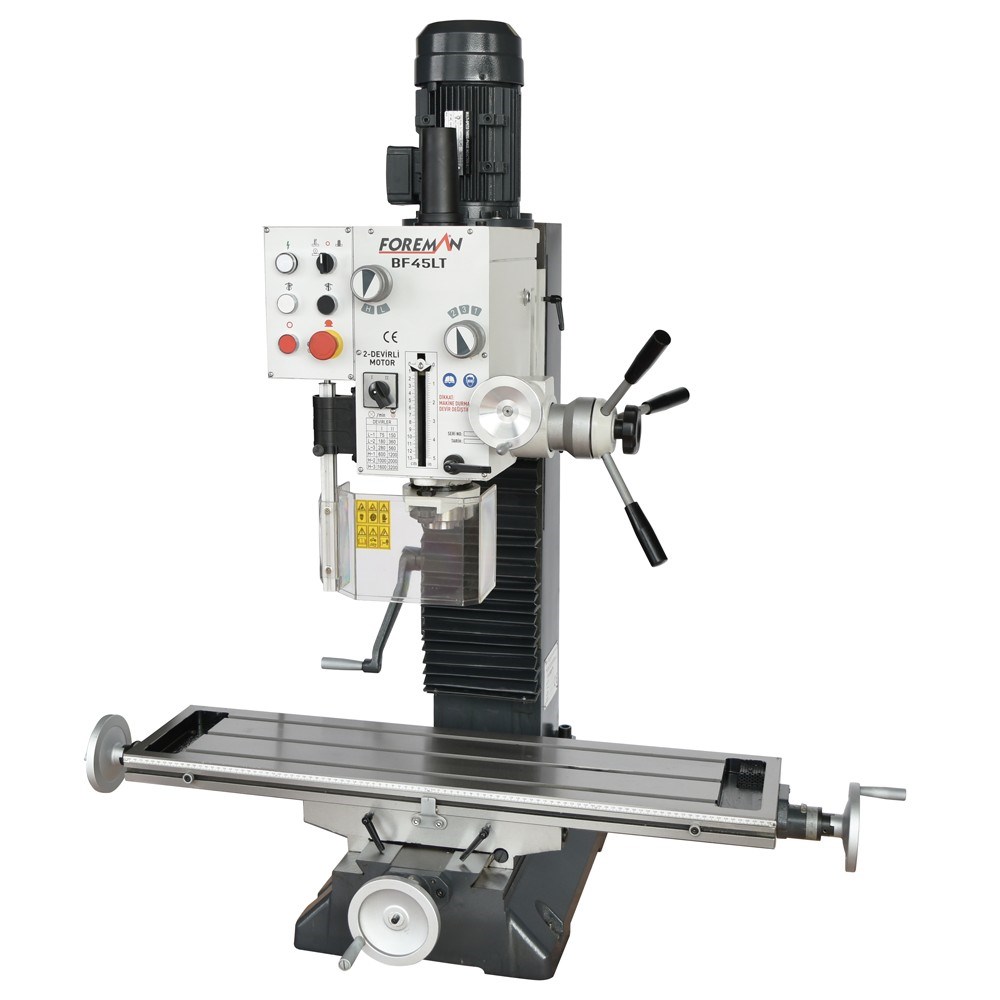

The BF45L with high speed, metal gearbox drive and automatic threading is the ideal bench milling machine for drilling, milling and thread cutting. The dovetail bearing of the gear head ensures the best possible accuracy and stability. Thanks to its 90 degree tilting head, it offers flexible machining possibilities and creates ease of working at different angles. X axis movement is 750 mm, Y axis movement is 200 mm and Z axis movement is 460 mm. It can be easily used with standard 220 Volt electrical connection.
FEATURES :

Gearbox Driven Vertical Spindle
X, Y, Z Axis Movements 750x200x460 mm

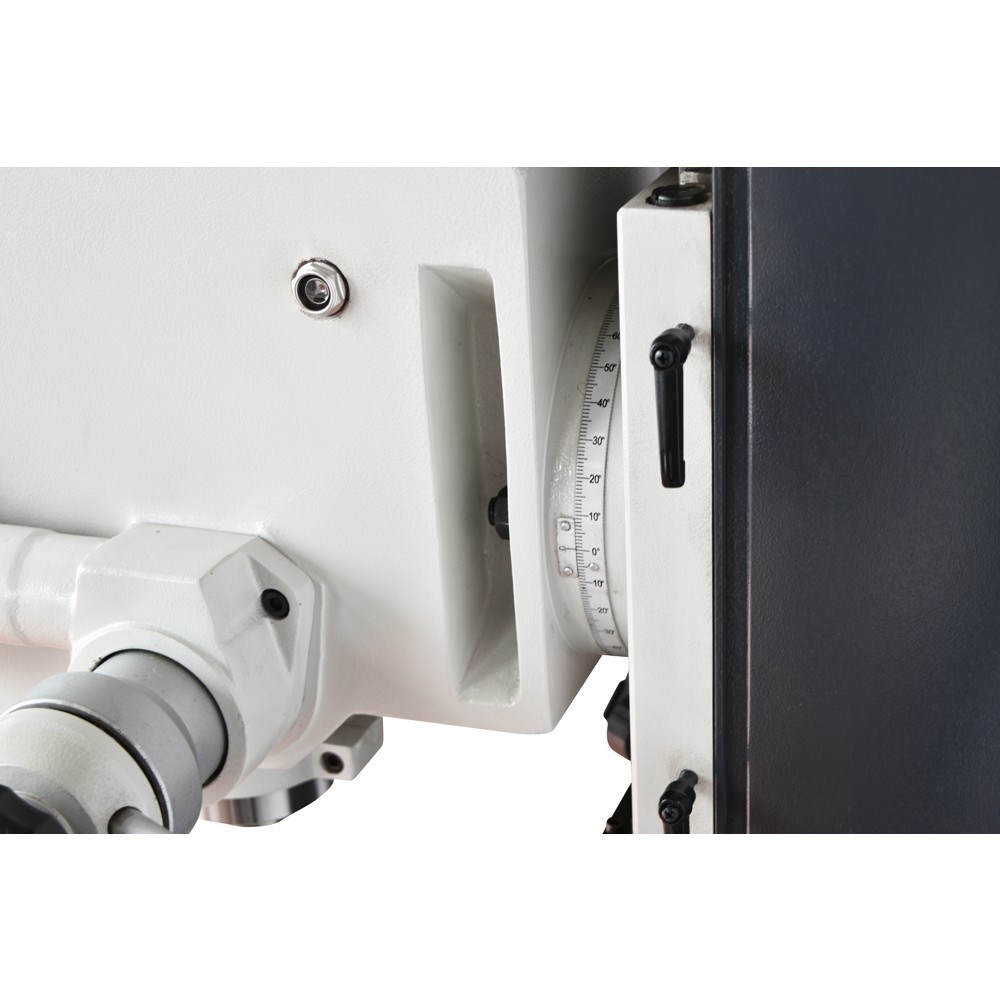

±90 Degree Reclining Head
Automatic Hole Drilling and Tapping
1.5 kW 220 Volt Motor Power


Havale İle Ödeme Fiyatı

125.631 TL
KDV Dahil

Kredi Kartı Tek Çekim Fiyatı

130.975 TL
KDV Dahil
Tüm Taksitli Kredi Kartı Ödeme Seçenekleri
Benzer Ürünler discount-for-bank-transfer

Havale indirimi, en son ödeme adımında havale seçimi yapıldığında otomatik olarak uygulanmaktadır. Tüm fiyatlar nakliye hariç fiyatlardır.

Download Product Catalog View Technical Specifications
TEKNİK
ÖZELLİKLER
  MEASURE VALUE UNIT OF MEASURE
Maximum Manual Iron Drilling Capacity 45 mm
Maximum Manual Steel Drilling Capacity 32 mm
Maximum Manual Milling Capacity (Face Scan) 80 mm
Maximum Manual Milling Capacity (Drum Scanning) 32 mm
Maximum Iron Threading Capacity M16
Maximum Iron Threading Capacity M12
Spindle Size MK4
Spindle Sleeve Travel 130 mm
Right-Left Tilt of Vertical Head 90 degree
Maximum X-Y-Z Axis Movements 750x200x460 mm

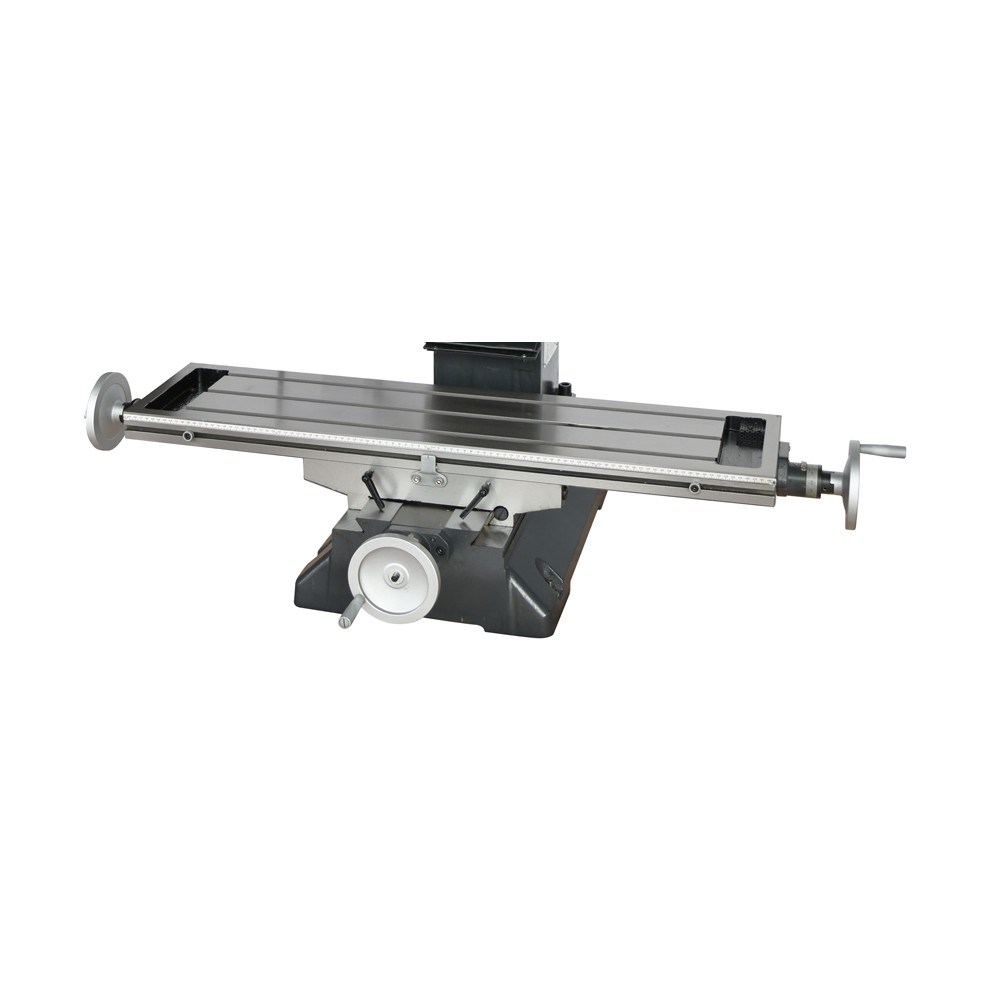

Width-Length Table Dimensions 1000x240 mm
Vertical Spindle Speed 75-3200 rpm
Vertical Spindle Speed 12 pcs
Motor 1500/380 W/V
Machine Size 1050x760x1150 mm
Weight 350 kg
STANDARD
EQUIPMENT

- ±90 Degree Reclining Head
- Spindle with Gearbox
- Double Speed 380V Motor

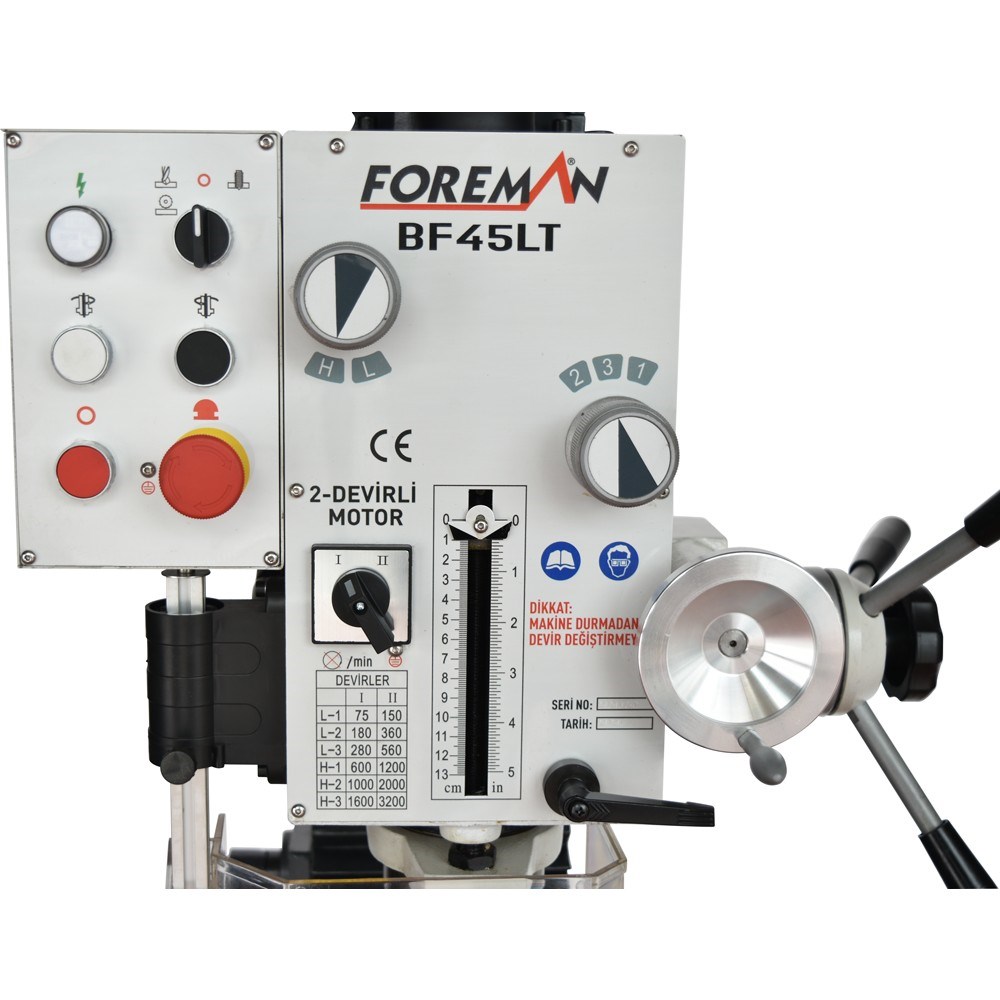

- Compact Control Panel
- Tooth Extraction Feature
- Spindle Protection

STANDART
ACCESSORİES

Morse Conical (MK4-MK3)
- Chuck
- MK4 Collet Holder
- 8 Piece Clamp Set
- Arbour
- Part Binding Set
- Tool Bag
- Tools
- Vise
