TK3290V-CETVELLI

Universal Lathe Machine – Ruler

It has a maximum diameter of 320 millimetres and a maximum length of 900 millimetres. The universal lathe enables precise adjustment of the spindle speed in accordance with the workpieces and machining requirements thanks to the speed adjustment with variator and gearbox. X and Z automatic feed system for surface quality and efficient machining. Metal gearbox gear and threading feature are designed for professional work. Powered by 220 voltage, the lathe allows you to customise and optimise your work with a wealth of accessories including digital display and ruler.
FEATURES :

Diameter Over Counter 320 mm
900 mm Between Two Tailstocks
Spindle Hole Diameter 38 mm
Main Motor Power 1500 W

Transfer Price Excluding VAT
176.000 TL
Transfer Price Including VAT
160.000 TL
Ödeme Seçenekleri
Benzer Ürünler
Download Product Catalog View Technical Specifications
TEKNİK
ÖZELLİKLER
  MEASURE VALUE UNIT OF MEASURE
Swing Over Bed

320

 mm
Swing Over Cross Slide 200 mm
Maximum Length of Workpiece 900 mm
Spindle Bore 38 mm

Spindle Conical

 MT5
Spindle Speed Steps

Variator


Spindle Speed Range

(L) 75-435

rpm
Spindle Speed Range

(H) 400-2250

rpm
Main Motor Power

1.5 (220 Volt)

 kW

Longitudinal Feed Range

 0.017-0.25

mm/min

Transverse Feed Range

 0.07-0.52

mm/min

Metric Threads

 0.20 – 3.5

mm/min

Metric Thread Steps

 17

pcs

Imperial Threads

 8 - 56

mm/min

Imperial Thread Steps

 21

pcs

Maximum Travel of Cross Slide

 170

mm

Maximum Travel of Compound Rest

 90

mm

Movement Againist Punta Pinol

 32

mm

Morse Taper of Tilstock Sleeve

 MT3



Weight

 300

kg
STANDARD
EQUIPMENT

- X and Z Axis Digital Reader
- Cooling Water Equipment
- Lighting Lamp
- Inverter
- Spindle Protection Cover
- Toolpost Protection
- Ball Screw Sheet Metal Protection
- Tooth Tracking Eye
- Digital Speedometer
- Machine Stand

STANDARD
ACCESSORIES

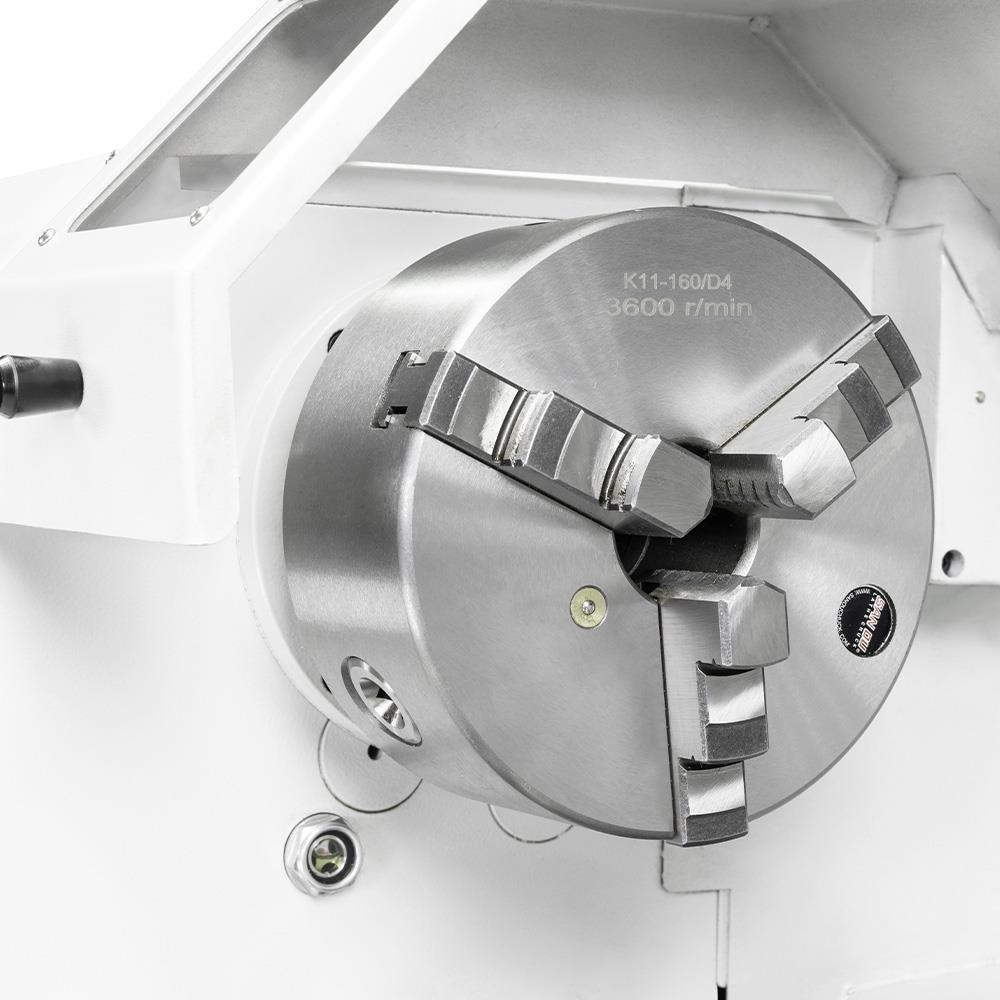

- 3 Legged 160 mm Mirror
- 4 Legged 160 mm Shutter Mirror
- Movable Lunet
- Fixed Lunet
- Hive
- Rotary Tailstock
- Fixed Tailstock
- Tool Bag
- Tools
