Universal Lathe - Without Bench
Universal Lathe - Without Bench
Universal Lathe - Without Bench
Universal Lathe - Without Bench
Universal Lathe - Without Bench
TH2866-AYAKSIZ

Universal Lathe - Without Bench

The 220-voltage desktop universal lathe with a maximum diameter of 280 millimetres and a maximum length of 660 millimetres allows you to process workpieces with precision. The metal transmission gear and threading feature are designed for professional work. A wide range of accessories allows you to customise and optimise your work.
FEATURES :

Diameter Over Counter 280 mm
660 mm Between Two Tailstocks
Spindle Bore Diameter 26 mm
Main Motor Power 750 W

Havale İle Ödeme Fiyatı

73.920 TL
KDV Dahil

Kredi Kartı Tek Çekim Fiyatı

77.056 TL
KDV Dahil
Tüm Taksitli Kredi Kartı Ödeme Seçenekleri
Benzer Ürünler havale-ile-odeme

Havale indirimi, en son ödeme adımında havale seçimi yapıldığında otomatik olarak uygulanmaktadır. Tüm fiyatlar nakliye hariç fiyatlardır.

Download Product Catalog View Technical Specifications
TEKNİK
ÖZELLİKLER


MEASURE VALUE

UNIT OF MEASURE
Diameter Over Counter

280

 mm
Over Car Diameter 182 mm

Counter Width

 155 mm
Distance Between Centres 660 mm
Spindle Bore Diameter 26 mm
Spindle Speed Number

6

 pcs

Spindle Speed Range

125-2000

rpm
Main Motor Power

0.75

 kW

Car Transverse Movement

 170

mm

Car Top Pen Holder Movement

 110

mm

Counter Tailstock Pinol Diameter

32

mm

Counter Tailstock Pinol Taper

 MT3



Counter Tailstock Pinol Feed Amount

 70 mm

Metric Thread Pitches

 0,25-3,5 mm

Metric Thread Pitch Units

 26

Inch Thread Pitches

 8-72 TPI

Inch Tooth Pitch Number

 36

Car Feed Speed

0.063-0.350

mm/min

Machine Dimensions

450x1295x1200

mm

Weight

 215 kg
STANDARD
EQUİPMENT

- Spindle Protection Cover
- Toolpost Protection
- Ball Screw Sheet Metal Protection
- Tooth Tracking Eye

STANDARD

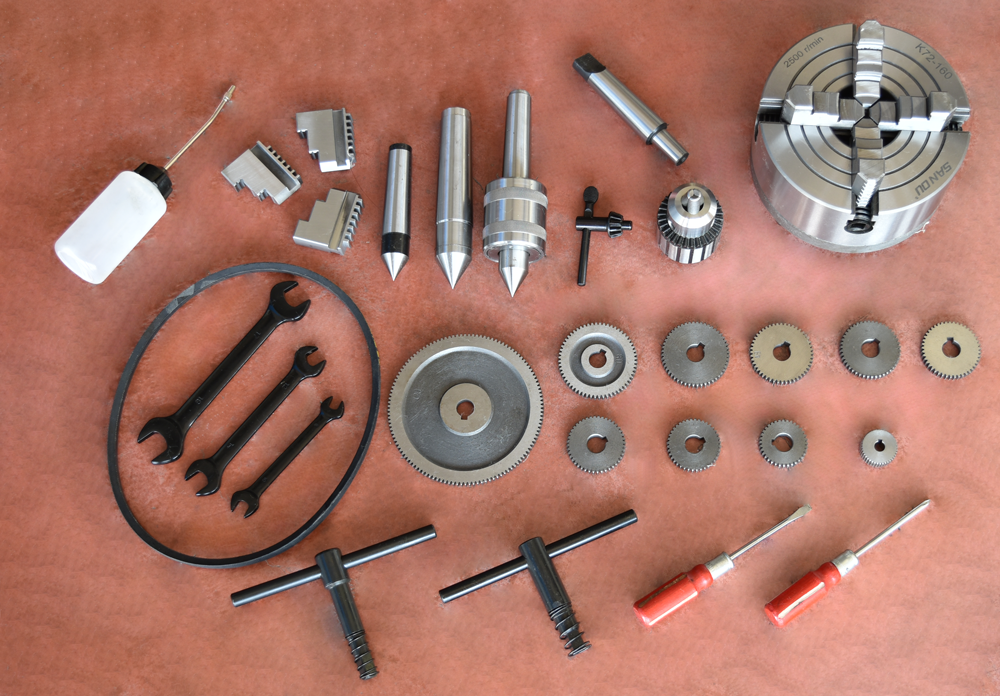

ACCESSORİES

- 3 Legged 125 mm Mirror
- 4 Legged 160 mm Shutter Mirror
- Movable Lunet
- Fixed Lunet
- Plate Mirror
- Rotary Tailstock
- Chuck
- Chuck Shank
- Sleeve (MT3-MT2)
- Fixed Tailstock
- Tool Bag
- Tools
